ASUS TUF GAMING B650-PLUS WIFI AMD B650 AM5 Ryzen™ Desktop 9000 8000 and 7000 ATX motherboard, 14 power stages, PCIe® 5.0 M.2 , DDR5 memory, WiFi 6 and 2.5 Gb Ethernet, USB4® support Aura Sync

• Brand: ASUS
• Series: TUF Gaming
• Model: TUF GAMING B650-PLUS WIFI
• Part Number: 90MB1BZ0-M0AAY0
• CPU Socket Type: AM5
• Chipset: AMD B650
• Memory Support: Up to 256GB DDR5 (6400+ OC), with dual-channel support

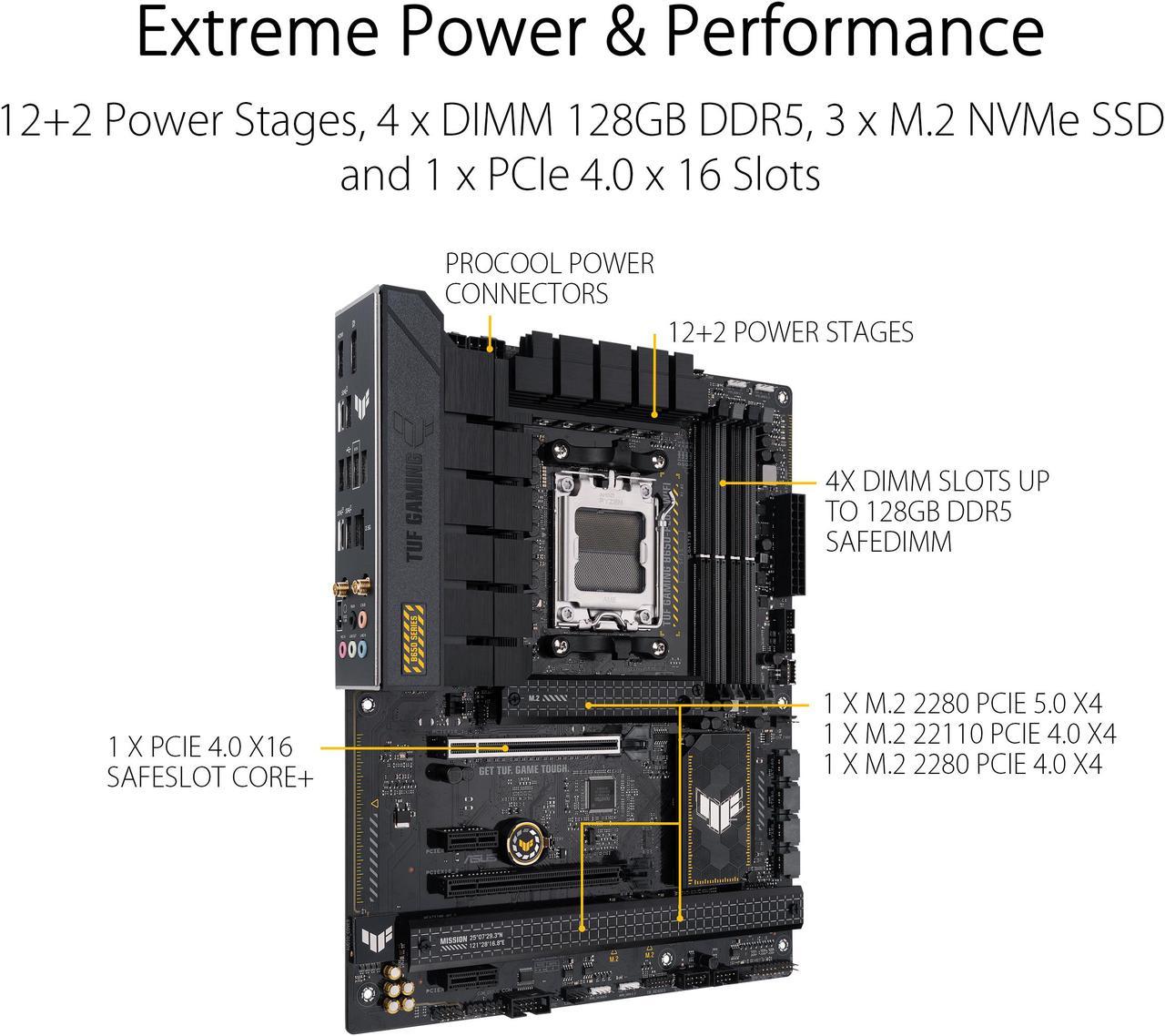

• Expansion Slots:
  • 1 x PCIe 4.0/3.0 x16 slot
  • 2 x PCIe 4.0/3.0 x1 slots
• Storage:
  • 4 x SATA 6Gb/s ports
  • 3 x M.2 slots (supporting PCIe 4.0/5.0)
  • RAID support (RAID 0/1/10)
• Audio: Realtek ALC S1200A 7.1 Surround Sound
• Networking:
  • 1 x Realtek 2.5Gb Ethernet port
  • Wi-Fi 6 support (2×2, 802.11 a/b/g/n/ac/ax)
  • Bluetooth v5.2

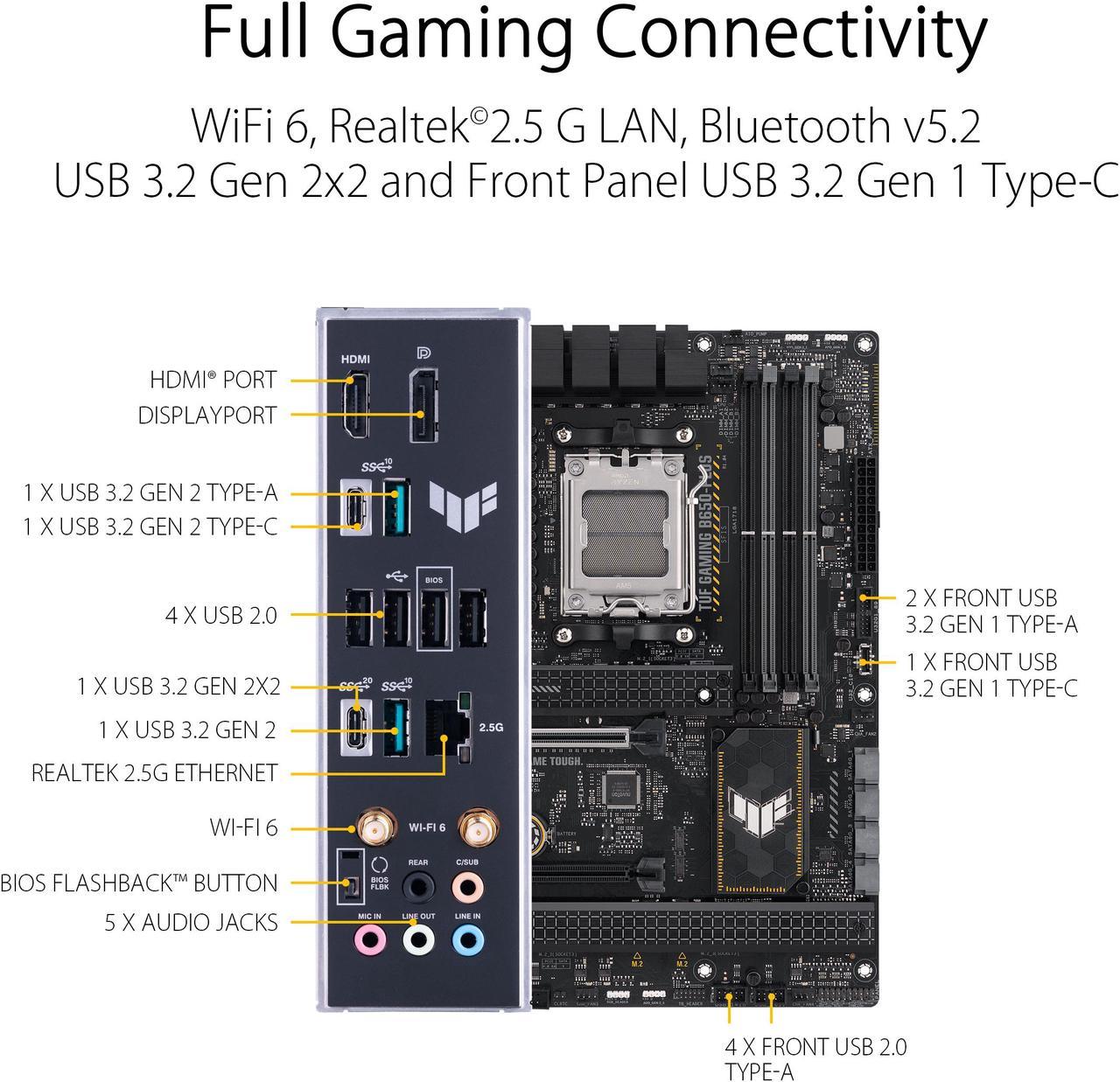

• Rear I/O Ports:
  • 1 x USB 3.2 Gen 2×2 (USB Type-C)
  • 3 x USB 3.2 Gen 2 (Type-A + USB Type-C)
  • 4 x USB 2.0
  • 1 x DisplayPort, 1 x HDMI port
  • 5 x Audio jacks
  • 1 x BIOS FlashBack button
• Form Factor: ATX (12.0″ x 9.6″)

Software Features:

• Windows 11 Compatible
• TUF Protection: Includes DIGI+ VRM, ESD Guards, and SafeSlot Core+ for robust system protection
• TUF Thermal Solutions: M.2 and VRM heatsinks for efficient cooling
• EZ DIY: BIOS FlashBack, ProCool connectors, and pre-mounted I/O shield for easier installation

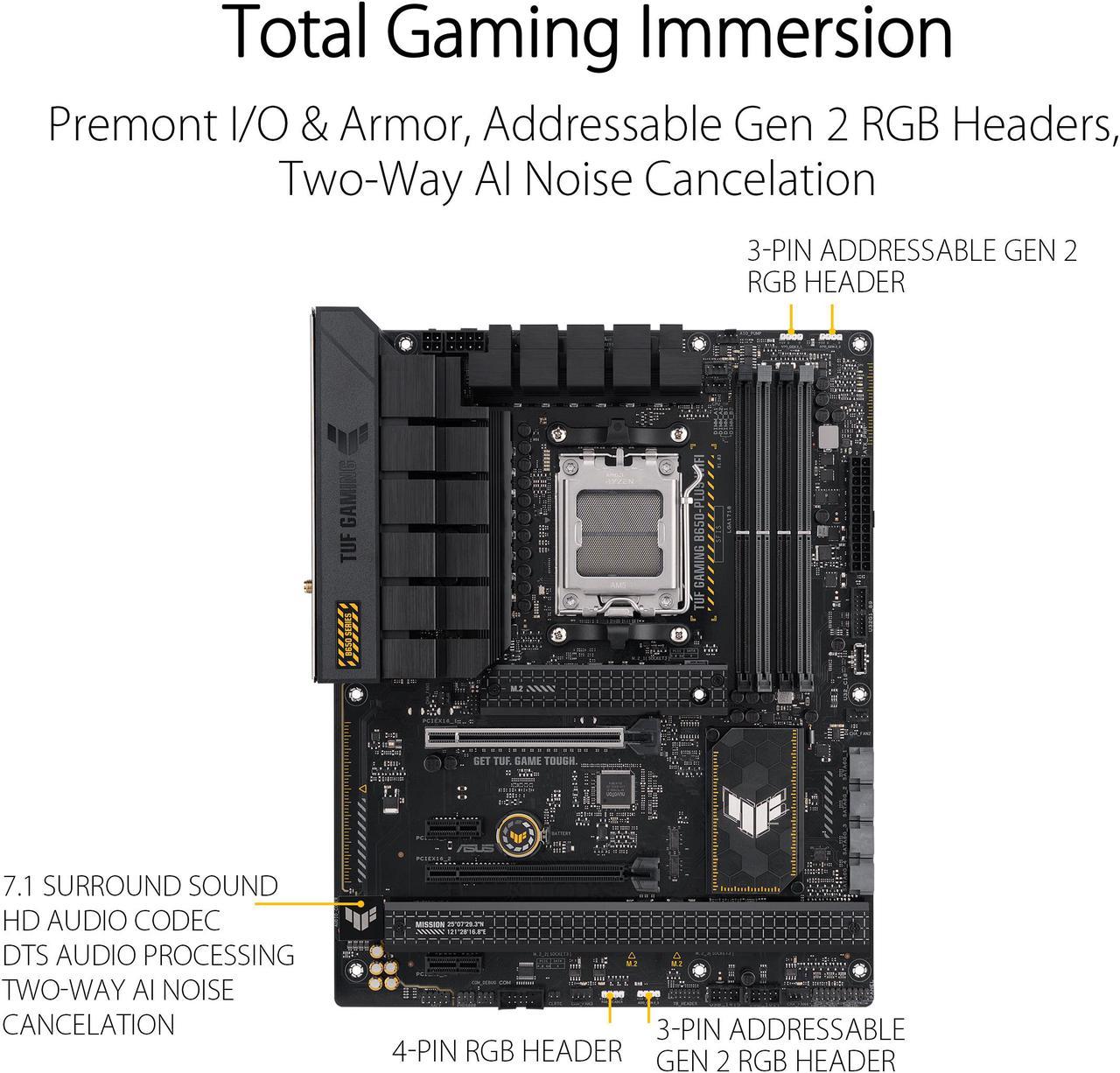

• Aura Sync: Full RGB lighting customization with Aura Sync technology

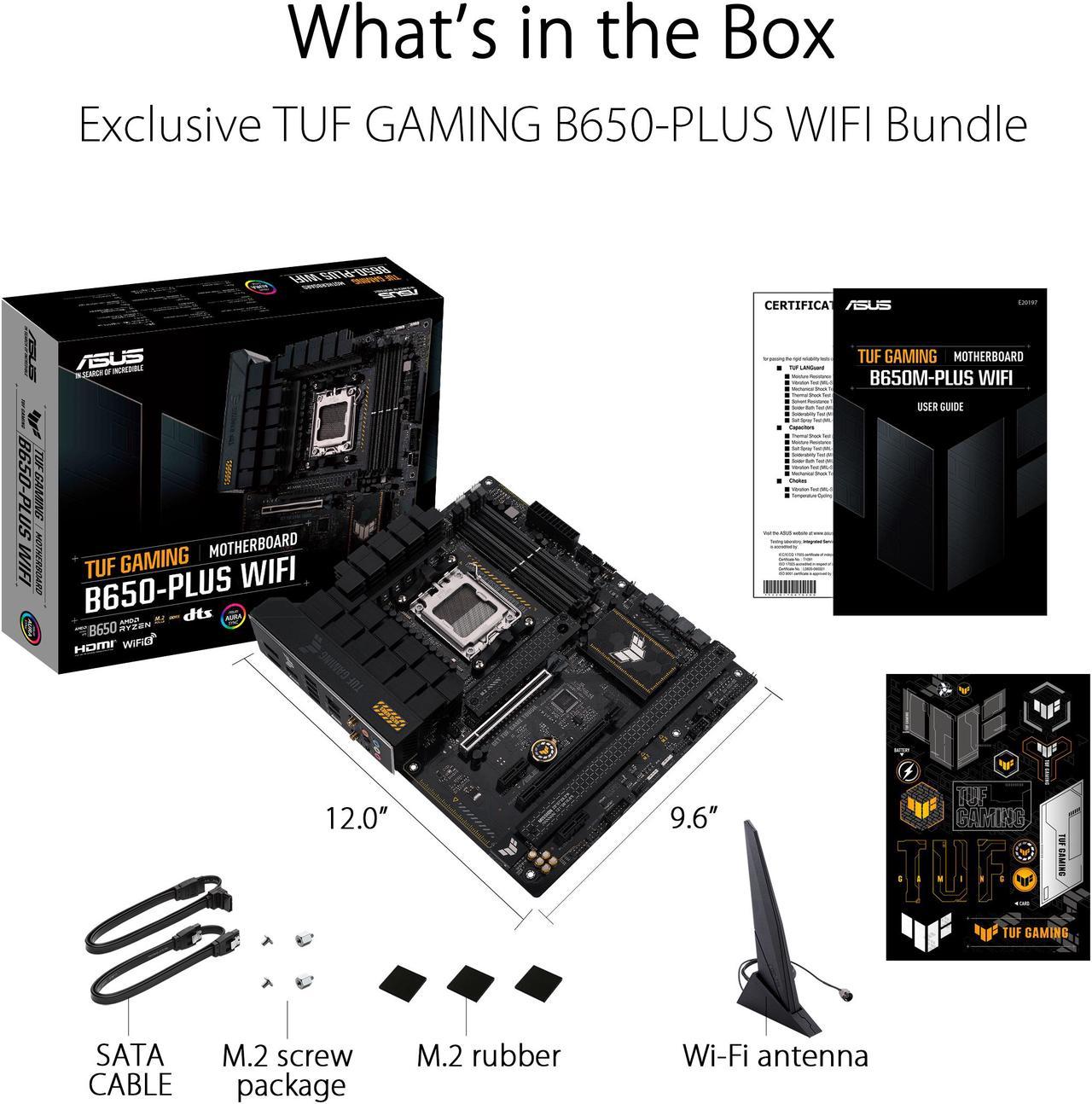

Package Contents:

• 2 x SATA 6Gb/s cables
• 1 x Wi-Fi moving antennas
• 2 x Rubber packages for M.2
• 1 x Screw package for M.2 SSD
• 1 x Support DVD
• 1 x TUF Certification Card
• 1 x User guide
