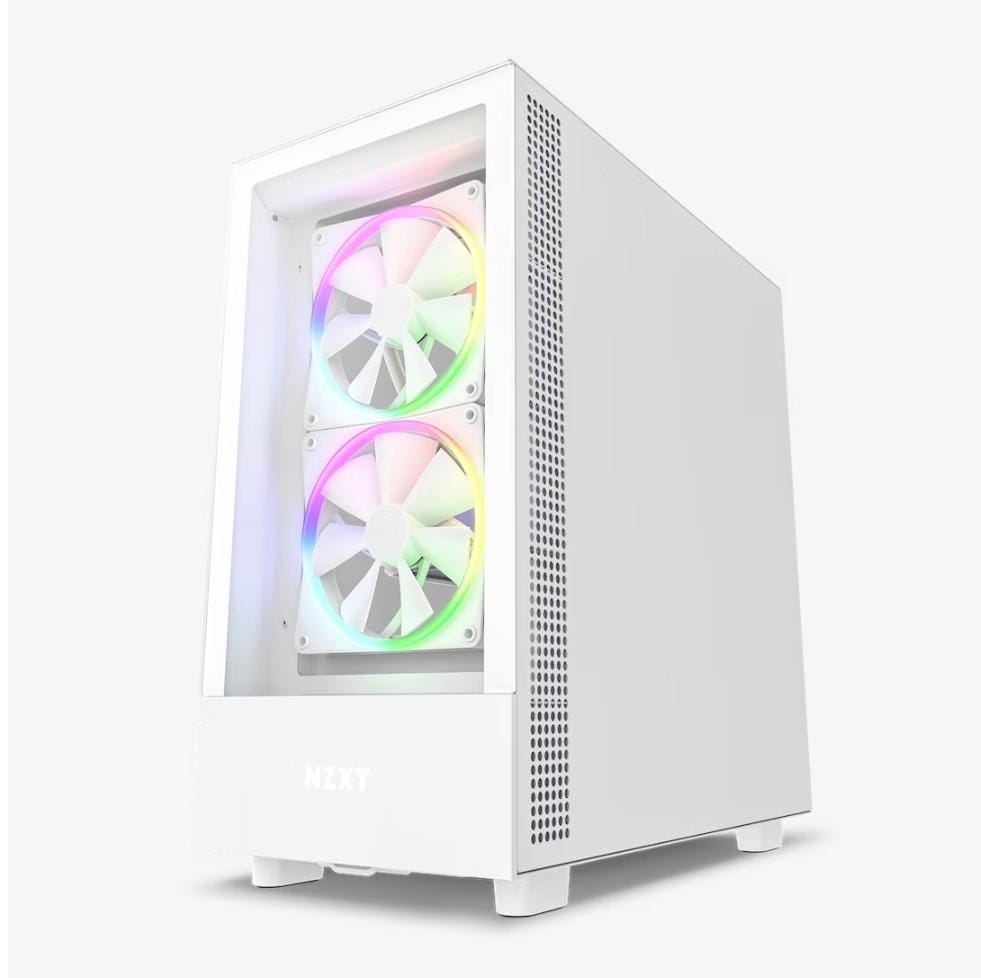

NZXT H5 ELITE PREMIUM MID-TOWER WHITE CASE

CC-H51EW-01

KEY SPECS

• Motherboard Support:Mini-ITX, Micro-ATX, ATX
• Enclosure Type:Mid-Tower
• Case Material:SGCC Steel, Ultra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only)

DIMENSIONS

• Height:464 mm (With Feet)
• Width:227 mm
• Depth:446 mm
• Weight:8.1 kg

COMPATIBILITY & CLEARANCE

• Max CPU Cooler Clearance:Up to 165mm
• Max GPU Clearance:Up to 365mm
• Front Radiator Clearance:45mm
• Cable Management:Up to 23mm

FRONT I/O PORTS

• USB 3.2 Gen 1 Type-A:1
• USB 3.2 Gen 2 Type-C:1
• Headset Audio Jack:1

INCLUDED ACCESSORIES

• Installation screws:1
• Cable ties:10
• RGB Lighting Controller:NZXT RGB Connector: 3 (Support up to 120 LEDs)

EXPANSION SLOTS

• Standard:7

DRIVE BAYS

• 2.5″:1+1
• 3.5″:1

FAN SUPPORT

• Front:2 x F Series RGB 140mm (Case Version) included
• Top:2 x 120mm
• Rear:1 x 120mm
• Bottom:1 x F Series Quiet 120mm (Case Version) included
• Filters:All Air Intakes

RADIATOR SUPPORT

• Front:Up to 280mm
• Top:Up to 240mm
• Rear:Up to 120mm

FAN SPECS

• Model:F140 RGB Fan
• Speed:500 – 1800 RPM
• Airflow:24.85 – 89.48 CFM
• Static Pressure:0.94 – 3.39 mm-H2O
• Noise:20 – 32.5 dBA
• Fan Connector:4-pin
