ASUS Z790-AYW WIFI W ATX Motherboard With Intel® Z790 Chipset, DDR5 8000+(OC), 12+1+1 Power Stages, Wi-Fi 6, 2.5Gb Ethernet, USB Type-C®, M.2 Heatsinks, And Aura Sync RGB , Intel® 14th, 13th & 12th Gen Support | SILVER
$ 255 ---ONLY---
✅ Expert Features

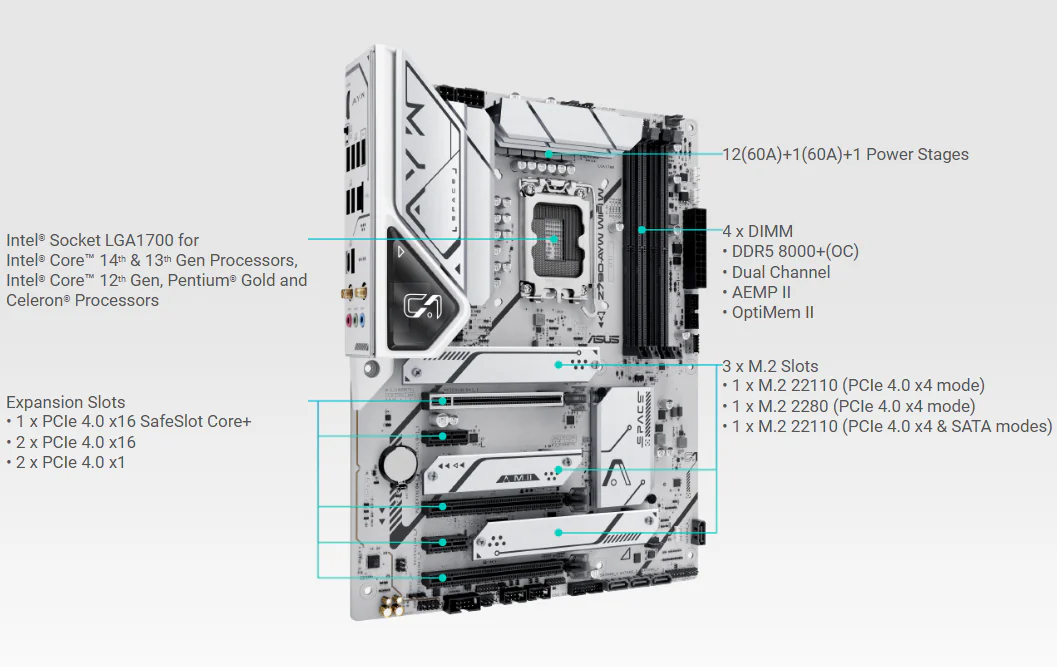

- Intel® 14th, 13th & 12th Gen Support: Built for the latest LGA1700 socket CPUs with full Turbo Boost Tech compatibility.
- Robust Power Delivery: 12+1+1 power stages rated at 60A, paired with enlarged VRM heatsinks for sustained performance.
- Advanced Memory Overclocking: AEMP II support for blazing-fast DDR5 speeds up to 8000+ MHz (OC).
- AI-Powered Efficiency: Intelligent Control with AI Cooling II and AI Noise Cancelation for smarter, quieter systems.
- Triple M.2 with Heatsinks: Keep NVMe drives cool and throttling-free during heavy data transfers.

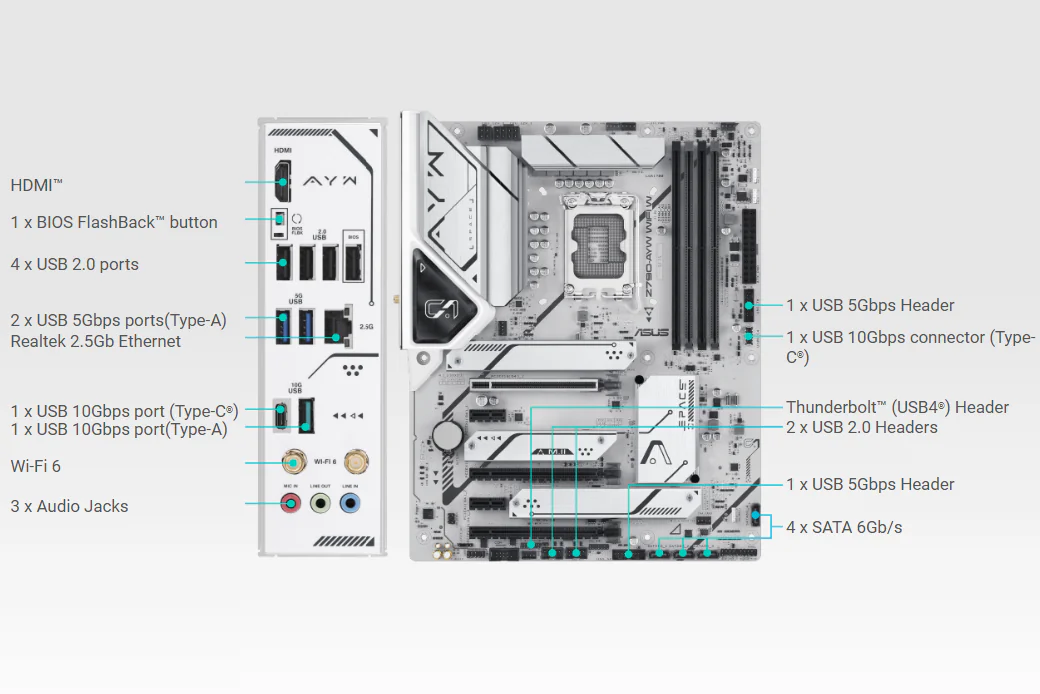

- Blazing Connectivity: Front & rear USB-C®, 2.5Gb LAN, Thunderbolt™ header, and Wi-Fi 6 with Bluetooth® v5.3 support.
- Next-Level Expansion: PCIe 4.0 x16 slots for GPUs and add-ons, backed by SafeSlot Core+ for durability.

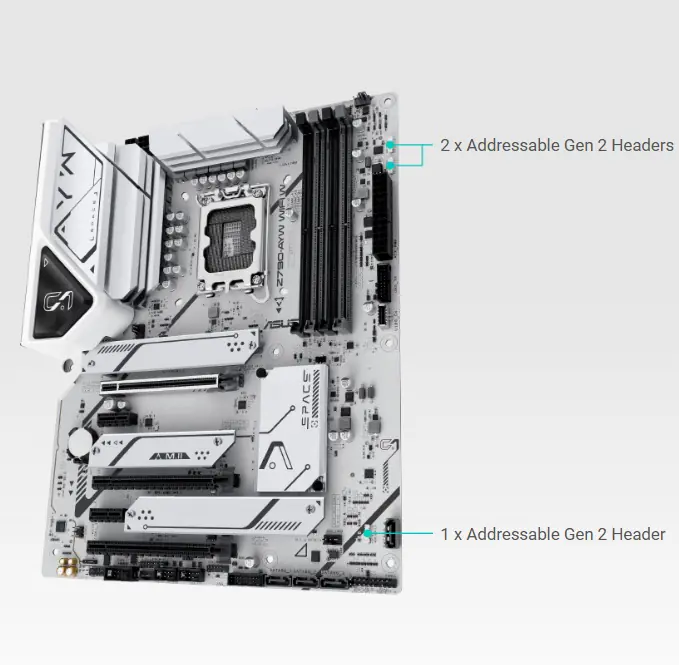

- Customization Galore: ASUS Aura Sync with 10 RGB presets, 3 Gen 2 addressable headers, and a sleek pre-mounted I/O shield.
- Comprehensive Cooling: Multiple 4-pin fan headers, dedicated AIO pump header, and premium M.2 and VRM heatsinks.
- ProCool Connectors: Solid 8+4-pin CPU connectors for stable and efficient power delivery.
- EZ DIY Tools: M.2 Q-Latch, Q-LED Core, BIOS FlashBack™ button, and pre-mounted I/O make building a breeze.
- High-Fidelity Audio: Realtek 7.1 Surround Sound HD Audio with premium capacitors and shielding for immersive sound.
📊 Expert Specs
| Category | Details |
|---|---|
| Model | ASUS Z790-AYW WIFI W |
| CPU Socket | LGA1700, supports Intel® 14th/13th/12th Gen Core™, Pentium®, and Celeron® |
| Chipset | Intel® Z790 |
| Memory Support | 4 x DDR5 DIMMs, up to 192GB, speeds up to 8000+ MHz (OC), Dual Channel |
| Graphics | 1 x HDMI 2.1 (4K@60Hz) |
| Expansion Slots | 3 x PCIe 4.0 x16 (x16/x4/x4), 2 x PCIe 4.0 x1 |
| Storage | 3 x M.2 (PCIe 4.0/SATA), 4 x SATA 6Gb/s |
| Ethernet | Realtek 2.5Gb LAN with ASUS LANGuard |
| Wi-Fi & Bluetooth | Wi-Fi 6 (802.11ax), Bluetooth® v5.3 |
| USB (Rear) | 2 x USB 10Gbps (1 Type-A + 1 Type-C®), 2 x USB 5Gbps, 4 x USB 2.0 |
| USB (Front) | 1 x USB 10Gbps Type-C®, 4 x USB 5Gbps, 4 x USB 2.0 |
| Audio | Realtek 7.1 Surround Sound, HD Audio CODEC, Premium Audio Caps |
| Cooling Headers | 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 3 x Chassis Fan |
| Special Headers | Thunderbolt™ (USB4®), S/PDIF, TPM, Gen 2 RGB x3, COM, Clear CMOS |
| BIOS | 192Mb UEFI AMI BIOS, ASUS EZ Flash, CrashFree BIOS 3 |
| Software | Armoury Crate, AI Suite 3, Norton 360 (Trial), MyASUS, WinRAR (Trial) |
| Form Factor | ATX (30.5 x 24.4 cm) |
| OS Compatibility | Windows® 10/11 64-bit |

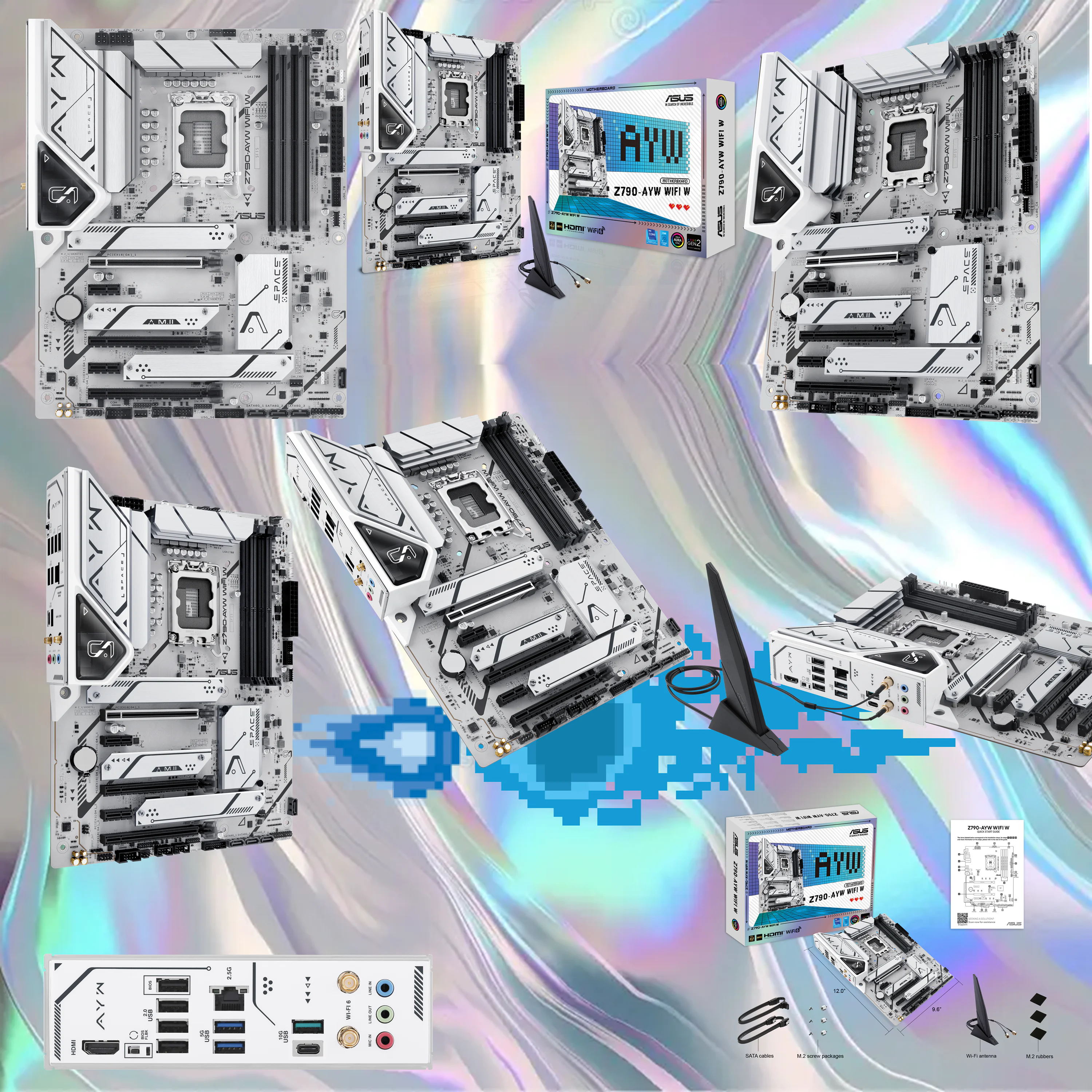

| Accessories | Wi-Fi Antenna, 2 x SATA Cables, M.2 Screws & Rubbers, Quick Start Guide |
11
People watching this product now!
Description
90MB1HT0-M0AAY0
ASUS Z790 AYW WIFI W DDR5 MOTHERBOARD
ASUS Z790-AYW WIFI W ATX Motherboard With Intel® Z790 Chipset, DDR5 8000+(OC), 12+1+1 Power Stages, Wi-Fi 6, 2.5Gb Ethernet, USB Type-C®, M.2 Heatsinks, And Aura Sync RGB , Intel® 14th, 13th & 12th Gen Support | SILVER
